High End Mercedes Benz MOST bus NTG 4.5 4.7 CarPlay & AA Interface
- Regular price
- Regular price
- Sale price

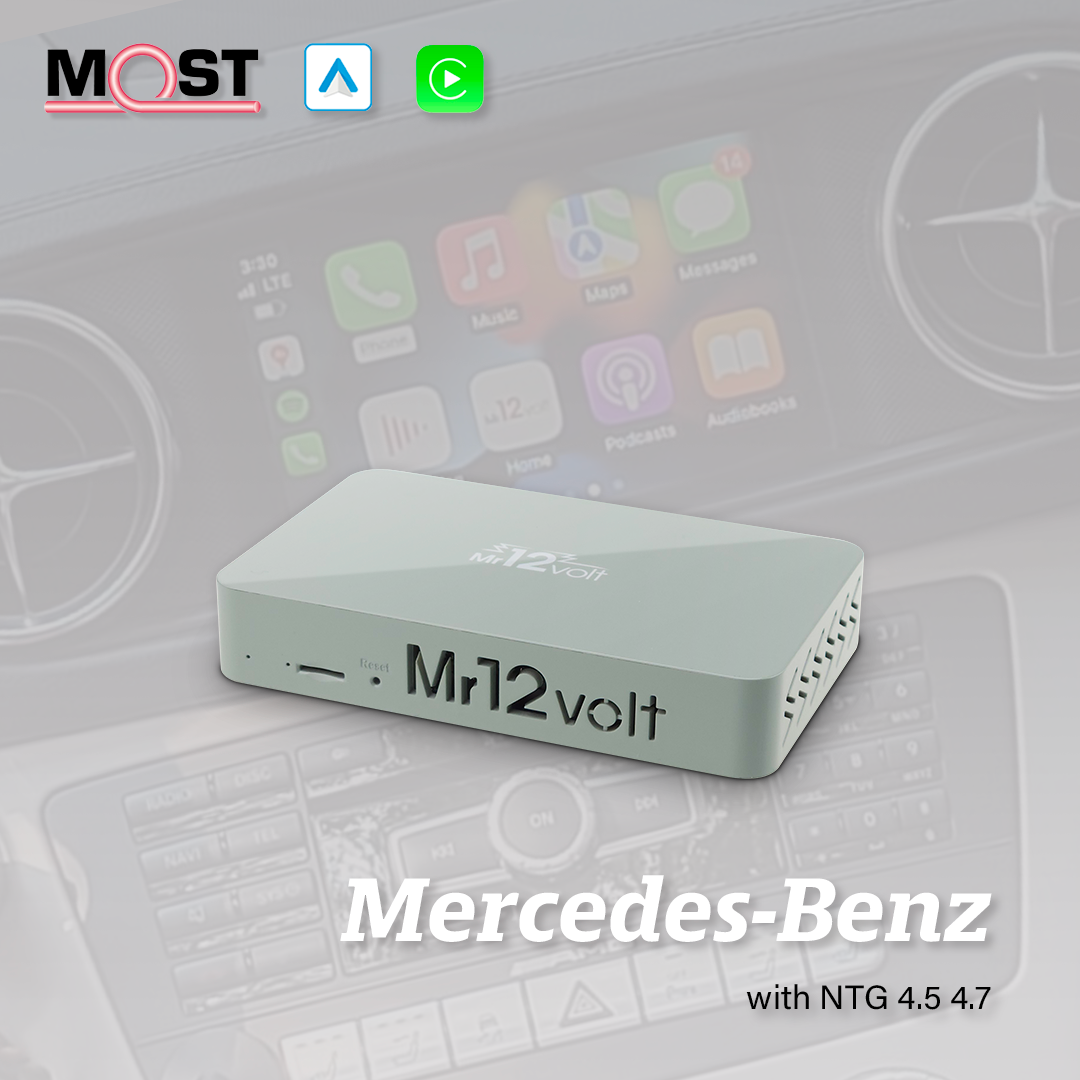

High End Mercedes Benz CarPlay & Android Auto Interface
Model No: P2000-NTG45MM
(Unlike other products that use "AUX in" as an audio source which downgrades the audio quality)
Mr12volt uses the MOST optical system and utilises "TV" video input, therefore providing a high end digital to digital sound quality. If you have a Harmon Kardon or high sound system, Mr12volt is your choice!!
No hassel to look for Coding !!
Mr12volt Module comes with a Built-In TV enabling function with NO third party coding tools required
After installing Mr12volt, simply press "C" + Return" buttons together for 5 secs, TV Menu will appear immediately
Compatible with Mercedes-Benz NTG 4.5 / 4.7 2012-2015
- W212 A207 C207 E-class
- W204 C
- W176 A
- W246 B
- C218 CLS
- W166 ML
- X166 GL
- W463 G
- R172 SLK
- R231 SL
- C197/R197 SLS
- OEM microphone supported
Runs on MOST BUS with High-End sound quality
- Supports OEM Reverse Camera
- Possible to add Aftermarket Front/Reverse/Blind spot Cameras
- Wireless & Wired Apple CarPlay, Google Android Auto
- Wireless MirrorLink
- Bluetooth Hands free & Audio Streaming
- USB Video & Music Playback
- Supports Apple Lossless music streaming
- Highly Customisable 15 bar DSP Equalizer

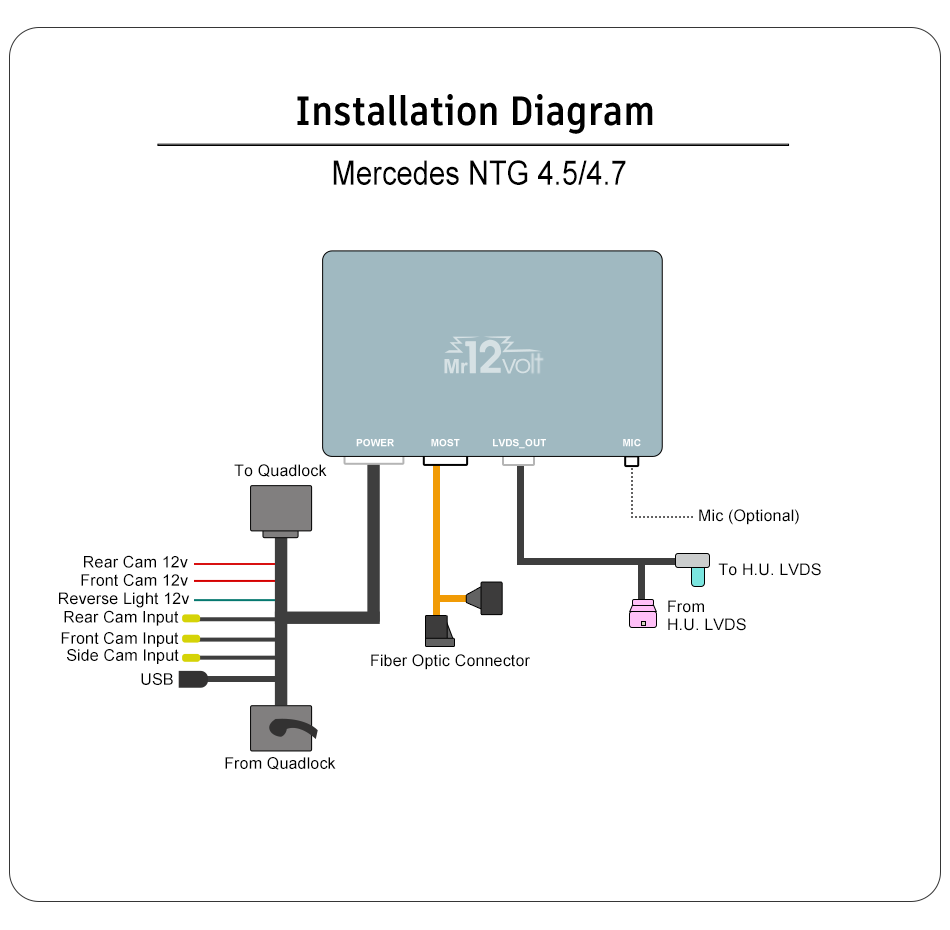

How it works
- Mr12volt is selected through TV features of Mercedes NTG 4.5 / 4.7
- No coding tools or Factory TV module is needed, once Mr12volt CarPlay module is installed successfully (pressing both "Return" and "C" buttons will activate the "TV" option in menu)
- Supports aftermarket cameras up to AHD720
- Supports the integration of OEM microphone
- Both MB and Mr12volt Bluetooth can be connected at the same time. MB will handle as HF/call and Mr12volt as HF/Media (as a result, MB HF takes over Mr12volt when a call is received)
P2000 supported multimedia type
High performance video and audio codec
- Decoding H.264 (Baseline and Main High Profile, Level 1-4.2) 30fps @1080p
- Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
- Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium and high levels. ASP, levels 0-5) 30fps @1080p
- Decoding Real-Video 8/9/10 30fps @1080p
- Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
- Decoding DivX (DivX3/4/5/6) 30fps @1080p
- Decoding H.263 (Profile 0, levels 10-70.) 30fps @720x576
- JPEG codec (Baseline interleaved) 8176x8176
- Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
- Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)
- Operating Temperature: -20 - +80 degree centigrade
- DAC resolution: 18Bit
- MP3 kbit: 8 - 384kbit
- Voltage: 10 - 14.6V DC
- Operation Current: 450mA (700mA when charging mobile phone)
- S/N ratio: 95dB
- Total Harmonic Distortion: 0.1%
- Frequency Response: 20Hz - 20KHz
User Manual: NTG45MM
