High End Mercedes Benz W221 NTG3.0 CarPlay & AA Interface MOST bus (2006-2008 pre-facelift)

Regular price
$449.00
Regular price
$449.00
Sale price
$449.00
    High End Mercedes Benz W221 NTG3.0 CarPlay & AA Interface MOST bus (2006-2008 pre-facelift)
    High End Mercedes Benz W221 NTG3.0 CarPlay & AA Interface MOST bus (2006-2008 pre-facelift)
    High End Mercedes Benz W221 NTG3.0 CarPlay & AA Interface MOST bus (2006-2008 pre-facelift)
    High End Mercedes Benz W221 NTG3.0 CarPlay & AA Interface MOST bus (2006-2008 pre-facelift)

    Product Details



    High End Mercedes Benz CarPlay & Android Auto Interface

    Model No: P2000-NTG30MM

    Brief introduction

    (Unlike other products that use "AUX in" as an audio source which downgrades the audio quality)
    Mr12volt uses the MOST optical system and utilises "TV" video input, therefore providing a high end digital to digital sound quality. If you have a Harmon Kardon or high sound system, Mr12volt is your choice!!

    No hassel to look for Coding !!
    Mr12volt Module comes with a Built-In TV enabling function with NO third party coding tools required

    And how do i activate TV function with Mr12volt??
    After installing Mr12volt, simply press  "Disc/Radio" + Return" buttons together for 5 secs, TV Menu will appear immediately

    * In case a Factory TV module is fitted, it has to be disabled and bypassed with a loop connector

    Compatible Mercedes NTG 3.0

    ** This product currently does not support Mercedes from North America and Japan **

    • W221 S-class  2006 - 2008 (pre-facelift)
    • W216 CL-class  2006-2008 (pre-facelift)

    Highlight Features:

    • OEM microphone supported
    • Runs on MOST BUS with High-End sound quality
    • Supports OEM Reverse Camera
    • Possible to add Aftermarket Front/Reverse/Blind spot Cameras
    • Wireless & Wired Apple CarPlay, Google Android Auto
    • Wireless MirrorLink
    • Bluetooth Hands free & Audio Streaming
    • USB Video & Music Playback
    • Supports Apple Lossless music streaming
    • Highly Customisable 15 bar DSP Equalizer

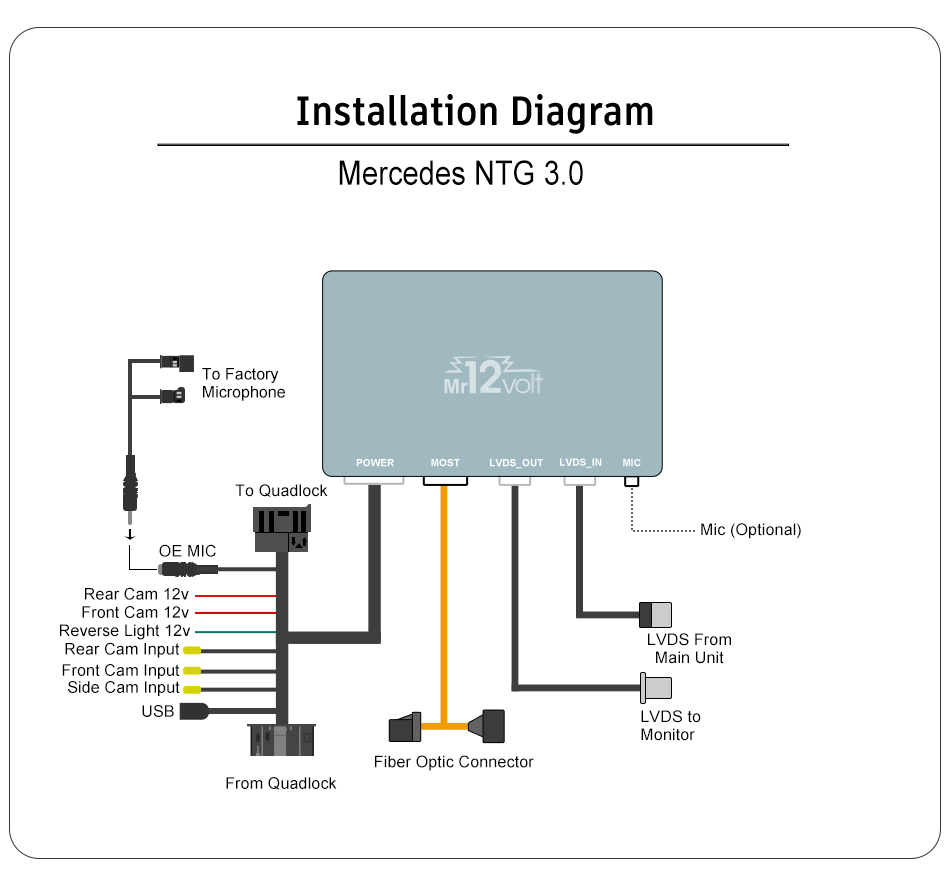

    How it works

    • Mr12volt is selected through TV features of Mercedes NTG 3.0
    • No coding tools or Factory TV module is needed, once Mr12volt CarPlay module is installed successfully (pressing both "Return" and "C" buttons will activate the "TV" option in menu)
    • Supports aftermarket cameras up to AHD720
    • Supports the integration of OEM microphone
    • Both MB and Mr12volt Bluetooth can be connected at the same time. MB will handle as HF/call and Mr12volt as HF/Media (as a result, MB HF takes over Mr12volt when a call is received)

        P2000 supported multimedia type

        High performance video and audio codec

        • Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
        • Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
        • Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium and high levels. ASP, levels 0-5) 30fps @1080p
        • Decoding Real-Video 8/9/10 30fps @1080p
        • Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
        • Decoding DivX (DivX3/4/5/6) 30fps @1080p
        • Decoding H.263 (Profile 0, levels 10-70.) 30fps @720x576
        • JPEG codec (Baseline interleaved) 8176x8176
        • Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
        • Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)

        Related Topics:

        How to mirror to P2000 from phone

        Technical Data:

        • Operating Temperature: -20 - +80 degree centigrade
        • DAC resolution: 18Bit
        • MP3 kbit: 8 - 384kbit
        • Voltage: 10 - 14.6V DC
        • Operation Current: 450mA (700mA when charging mobile phone)
        • S/N ratio: 95dB
        • Total Harmonic Distortion: 0.1%
        • Frequency Response: 20Hz - 20KHz

          User Manual: NTG30MM
